$249 is your absolute final/total here for the Vongon Paragraphs Pedal, a resonant low-pass filter with waveform generator, from Cali!

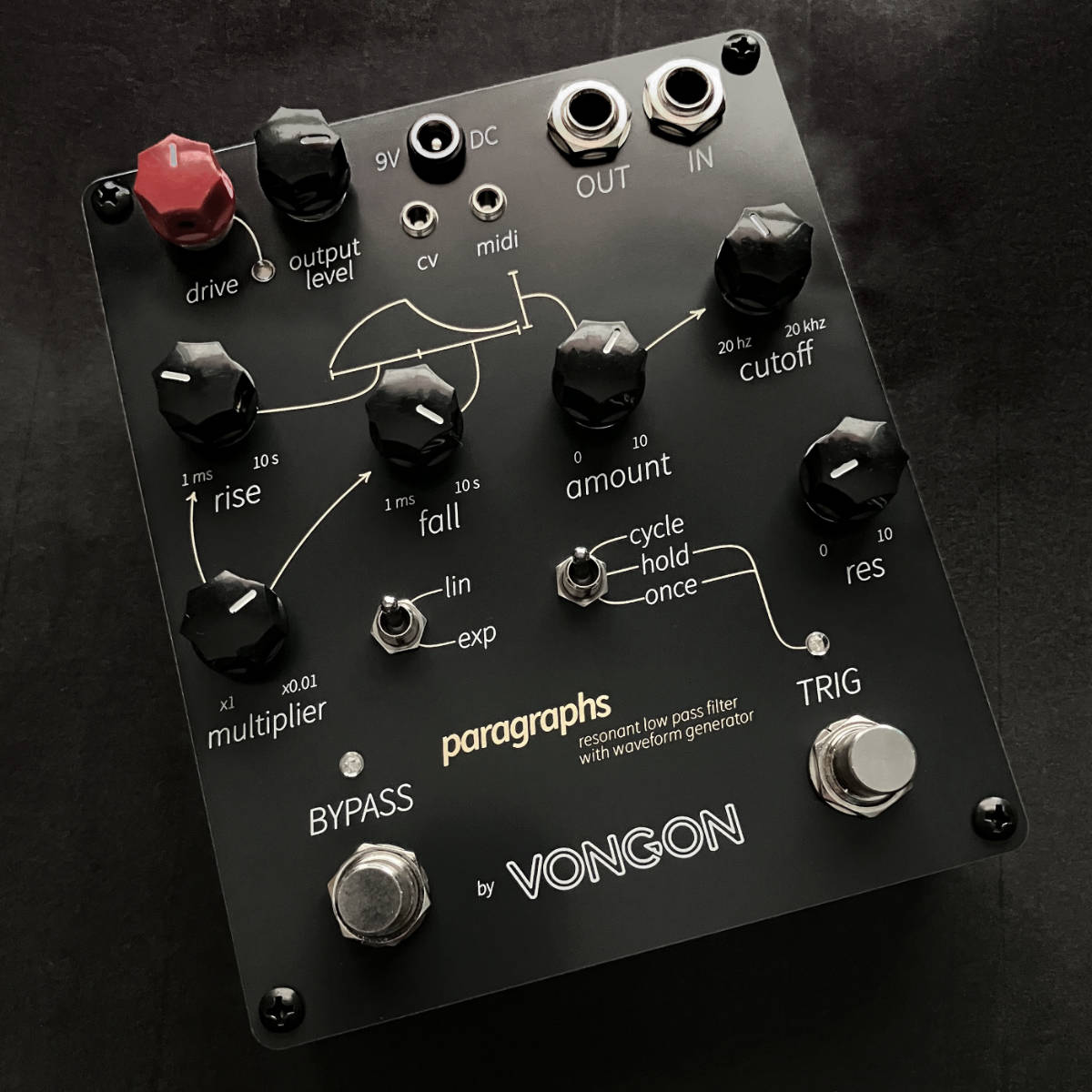

The Vongon Paragraphs Pedal is an analog, 4-pole resonant low-pass filter with an attack decay (AD) envelope generator. Paragraphs is designed with a focus on simplicity and flexibility.



The heart of the Vongon Paragraphs low pass filter circuit is the AS3320 analog chip... a modern replica of the same component used in analog classics like the Sequential Prophet 5, Pro-One mono-synth, Elka Synthex, and the LinnDrum. Cutoff spans the full audio spectrum, and resonance starts to self-oscillate at about 70 percent.

The Paragraphs Envelope Generator offers modulations in an uncommonly wide range of frequencies, starting as low as 0.05 hz, for slowly evolving 20 second long cycles, and reaching up to (and past) the audio threshold at 300 hz, for a wave shaping effect similar to sounds found on west coast style synthesizers (“think Buchla”).


Vongon Paragraphs accepts instrument and line level signals. Dedicated controls for input (drive), and output level, make it easy to move between a crystal clear clean tone and and a clipping fuzz. A multi-color LED provides a visual representation of the signal level. Red indicates clipping. Orange flashes indicate the start of overload. Green indicates the presence of signal at or below the nominal level.



Inputs for Control Voltage and MIDI are available to remotely trigger the envelope generator. This enables Vongon Paragraphs to stay in rhythmic synchronization with external systems like midi sequencers, euroracks, and digital audio workstations.

Manual - Vongon Paragraphs Pedal

MORE INFO:

Power Supply (sold separately):
This pedal does not use batteries, it uses a 2.1mm plug, 9 Volt DC, Center-Negative power supply, (like most all guitar pedals use). Any power supply higher than 9 Volt DC can damage the pedal.

Warranty:
This product comes with Vongon's 1-year warranty, under normal use with proper power supply.

Specs:

• 1/4” mono input/output jacks
• 5.7” x 4.7” x 1.5” enclosure dimensions
• true bypass
• input impedance: 1MΩ
• output impedance: <1kΩ
• current draw: 100mA max
